Abstract

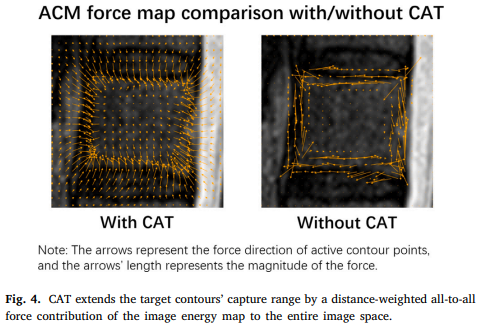

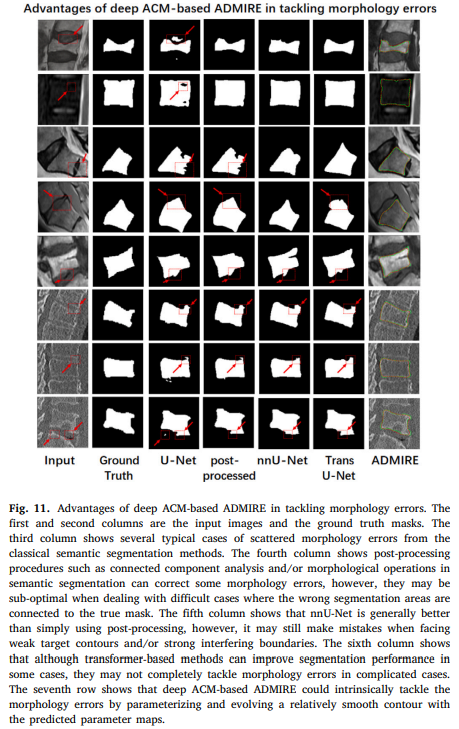

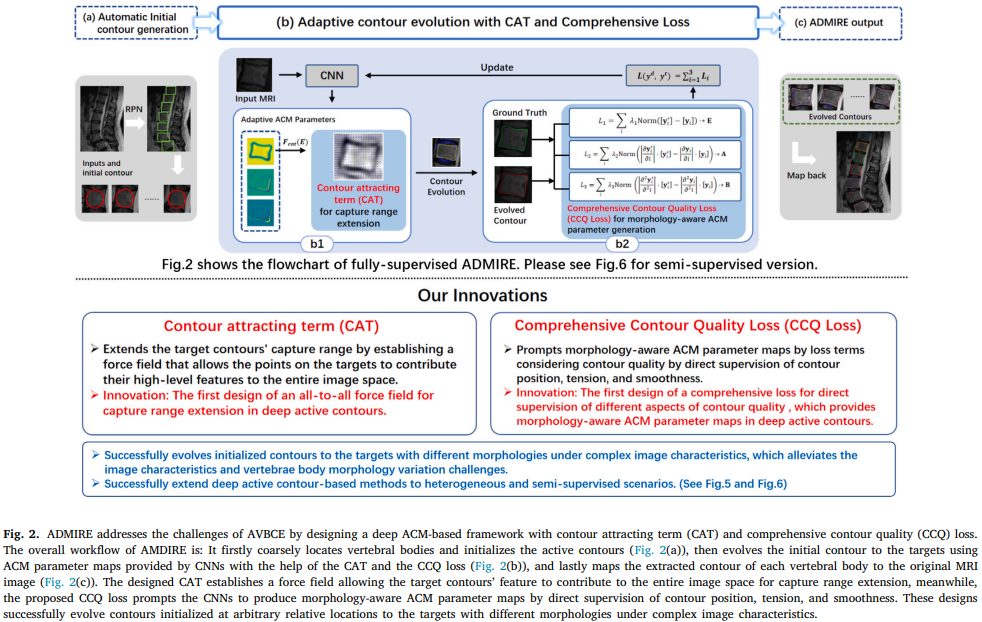

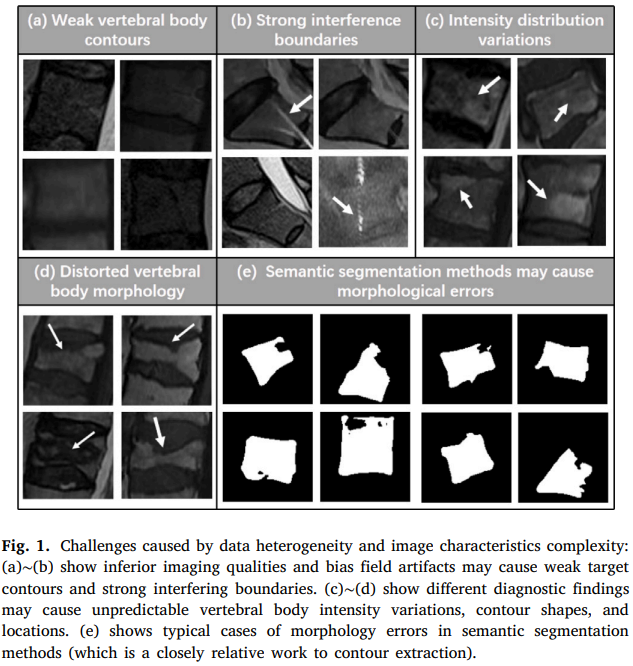

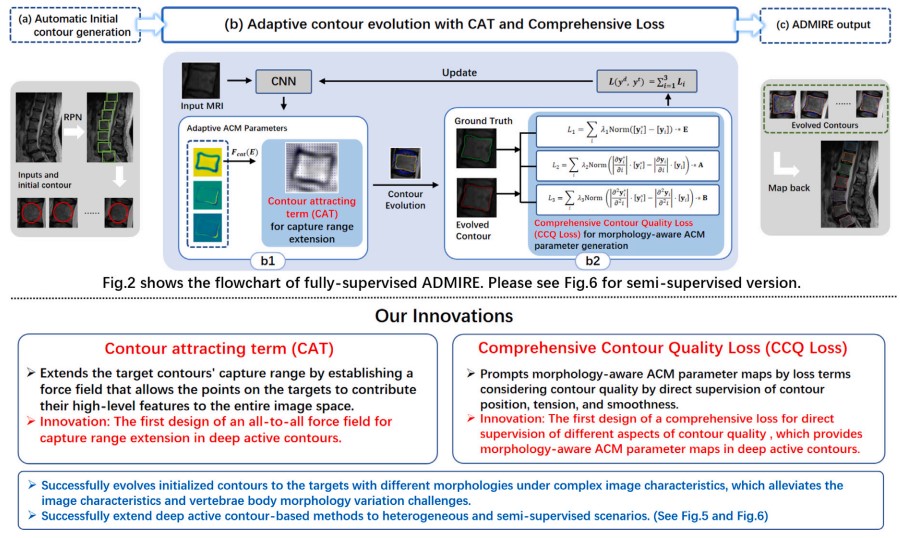

Automatic vertebral body contour extraction (AVBCE) from heterogeneous spinal MRI is indispensable for the comprehensive diagnosis and treatment of spinal diseases. However, AVBCE is challenging due to data heterogeneity, image characteristics complexity, and vertebral body morphology variations, which may cause morphology errors in semantic segmentation. Deep active contour-based (deep ACM-based) methods provide a promising complement for tackling morphology errors by directly parameterizing the contour coordinates. Extending the target contours' capture range and providing morphology-aware parameter maps are crucial for deep ACM-based methods. For this purpose, we propose a novel Attractive Deep Morphology-aware actIve contouR nEtwork (ADMIRE) that embeds an elaborated contour attraction term (CAT) and a comprehensive contour quality (CCQ) loss into the deep ACM-based framework. The CAT adaptively extends the target contours' capture range by designing an all-to-all force field to enable the target contours' energy to contribute to farther locations. Furthermore, the CCQ loss is carefully designed to generate morphologyaware active contour parameters by simultaneously supervising the contour shape, tension, and smoothness. These designs, in cooperation with the deep ACM-based framework, enable robustness to data heterogeneity, image characteristics complexity, and target contour morphology variations. Furthermore, the deep ACMbased ADMIRE is able to cooperate well with semi-supervised strategies such as mean teacher, which enables its function in semi-supervised scenarios. ADMIRE is trained and evaluated on four challenging datasets, including three spinal datasets with more than 1000 heterogeneous images and more than 10000 vertebrae bodies, as well as a cardiac dataset with both normal and pathological cases. Results show ADMIRE achieves state-of-the-art performance on all datasets, which proves ADMIRE's accuracy, robustness, and generalization ability.

Framework

Experiment

Conclusion

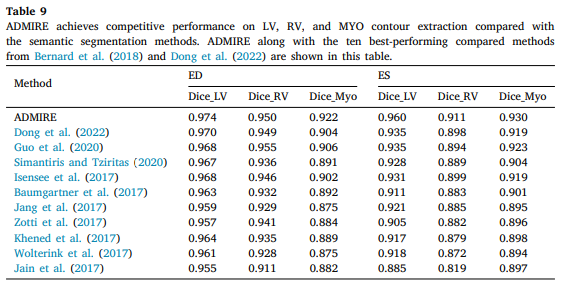

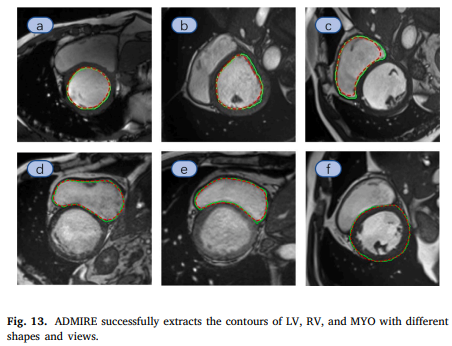

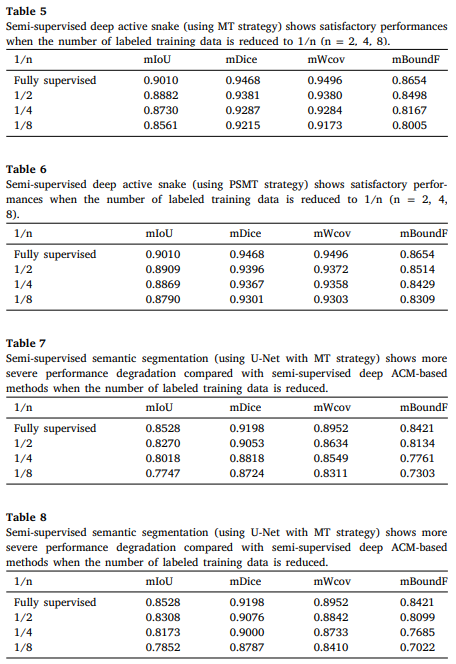

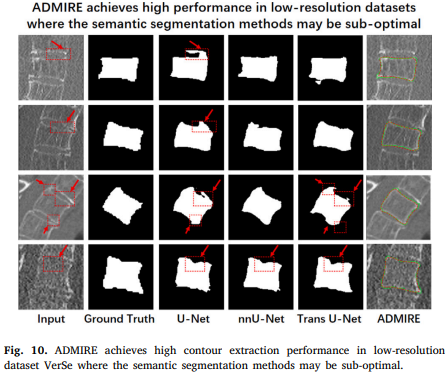

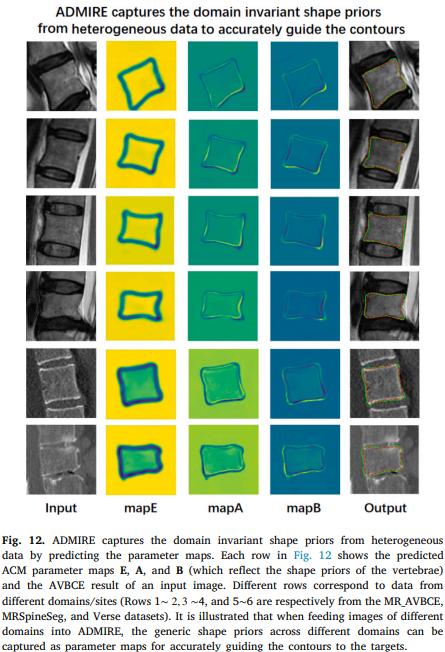

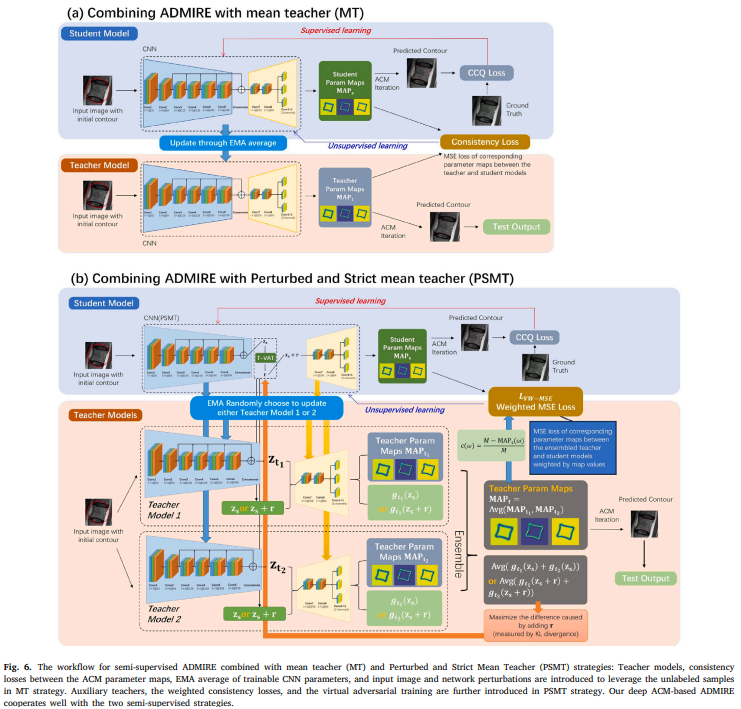

In this paper, we develop a novel ADaptive MultI-contour extRaction nEtwork (ADMIRE) for Automatic vertebral body contour extraction (AVBCE) from heterogeneous spinal MR Images. Our ADMIRE innovatively proposes a novel contour attraction term (CAT) and a comprehensive contour quality (CCQ) loss to extend the target contours' capture range and generate morphology-aware parameter maps. The deep ACM-based ADMIRE, assisted by the two designed strategies, could capture and leverage the domain invariant shape priors to intrinsically tackle data heterogeneity and image characteristics complexity in different sites, patients, and domains. The exploitation of shape priors also enables ADMIRE's function in semi-supervised scenarios. Extensive experiments on three spinal datasets from different domains/sites as well as their mixture have demonstrated the performance of ADMIRE in accurately capturing vertebral body boundaries, reaching the state-of-the-art, tackling the data heterogeneity, functioning in semi-supervised cases, and being extended to large structure segmentation such as cardiac MRI. Codes are available at https:// github.com/TommyIX/ADMIRE.

Acknowledgement

This work is supported by the National Natural Science Foundation of China (Youth Project) under Grants 62101607.
